Strategy Connection Guide

Hyper RSI Setup Guide

The full walkthrough for connecting the Hyper RSI indicator on TradingView to the MOABOT webhook.

An RSI + DCA combo strategy — split entries in oversold/overbought zones and 3-stage take-profit to manage average cost.

This guide is a reference only

All settings shown on screen are examples and do not guarantee profits. Adjust based on your capital, risk tolerance, and trading style.

MOABOT is a trading-signal automation tool, not investment advice.

Read first

Before you follow this guide

Every number on screen is an example used to demonstrate the flow. Before live trading, double-check that values match your own capital, strategy, and risk limits.

Reference Guide

This document is a reference for learning how to use MOABOT. Following the same settings will not produce the same results.

Use Your Own Settings

The example values are only a starting point. Adjust inputs to fit your capital, trading timeframe, and risk tolerance.

No Profit Guarantee

Backtest results based on past data do not guarantee future profits. Always consider the possibility of loss.

You Are Responsible

Exchange API permissions, fund management, and alert-setup accuracy are all the user's responsibility. If in doubt, validate with a small amount first.

Spot Funding Notice

Spot has no leverage — you need enough capital

Minimum Order Size

Exchange Policy

Each coin has its own minimum lot size (e.g. BTC 0.0001) and minimum order amount — differs by exchange.

3-Stage Take Profit

TP1 / TP2 / TP3

Hyper RSI splits take-profit into 3 stages. Each stage must clear the exchange minimum to work properly.

Korean Exchange Standard

Min ~16,000 KRW per TP cycle

Upbit / Bithumb policy requires ~5,000 KRW per order. To complete a 3-stage TP cycle, ~16,000 KRW or more should sit on the TP lines.

This is exchange policy — not something MOABOT can control

If TP orders are rejected due to insufficient funds, position cleanup will not happen correctly. Before starting, verify that your capital can fully cover a 3-stage TP cycle.

Overseas exchanges (OKX / Binance / Bybit / Bitget) also have per-coin minimum order amounts (typically 5–10 USDT). Korean exchanges are stricter.

All

OKX

OKX

Connect Hyper RSI on OKX

A one-pass walkthrough: enable MOABOT webhook → open TradingView chart → configure indicator/alert → connect the webhook URL.

Hyper RSI Q&A · settings OKX community

Symbol for this exchange

BTC/USDT (또는 BTCUSDT.P 무기한)

Estimated time

First setup: ~10–15 min

After that: ~3 min

Requirements

MOABOT indicator access enabled
OKX API key registered
TradingView account (free tier OK)

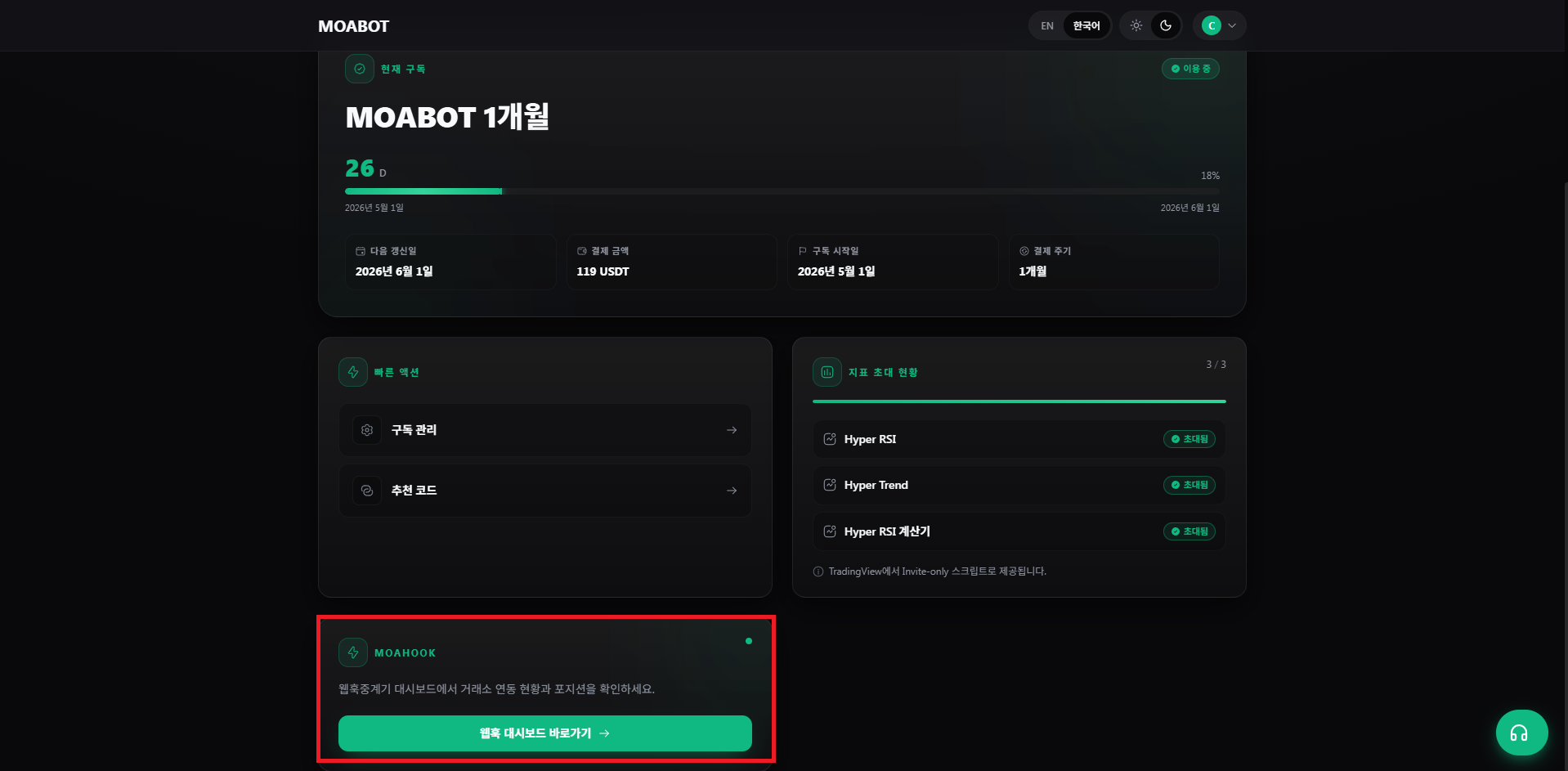

01OKX · Hyper RSI

Open the MOABOT webhook dashboard

What to do on this screen

On the My Page screen, click "Open Webhook Dashboard" to enter the MOAHook view.

Checkpoints

You must be logged in with an account that has indicator access enabled.
The MOAHook card on the dashboard leads to the same screen.

Next: Open exchange settings

OKX Hyper RSI 01 Open the MOABOT webhook dashboard — Find the menu matching the step title on the capture, then walk the checkpoints on the left in order.

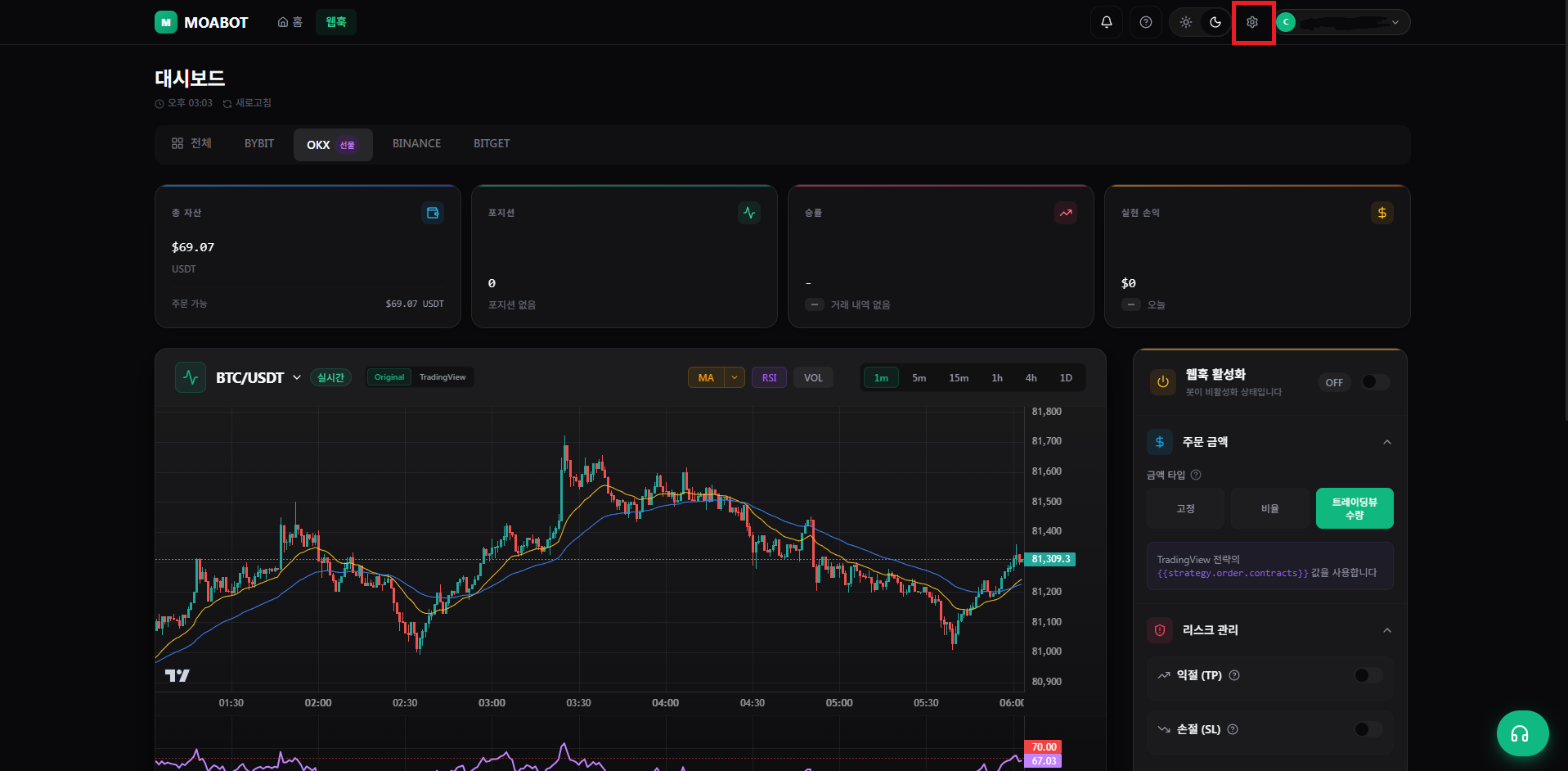

02OKX · Hyper RSI

Open exchange settings

What to do on this screen

Click the gear (settings) icon at the top-right of the webhook dashboard.

Checkpoints

Per-exchange enable toggles and webhook ON/OFF are managed in a single panel.

Next: Enable OKX spot

OKX Hyper RSI 02 Open exchange settings — Find the menu matching the step title on the capture, then walk the checkpoints on the left in order.

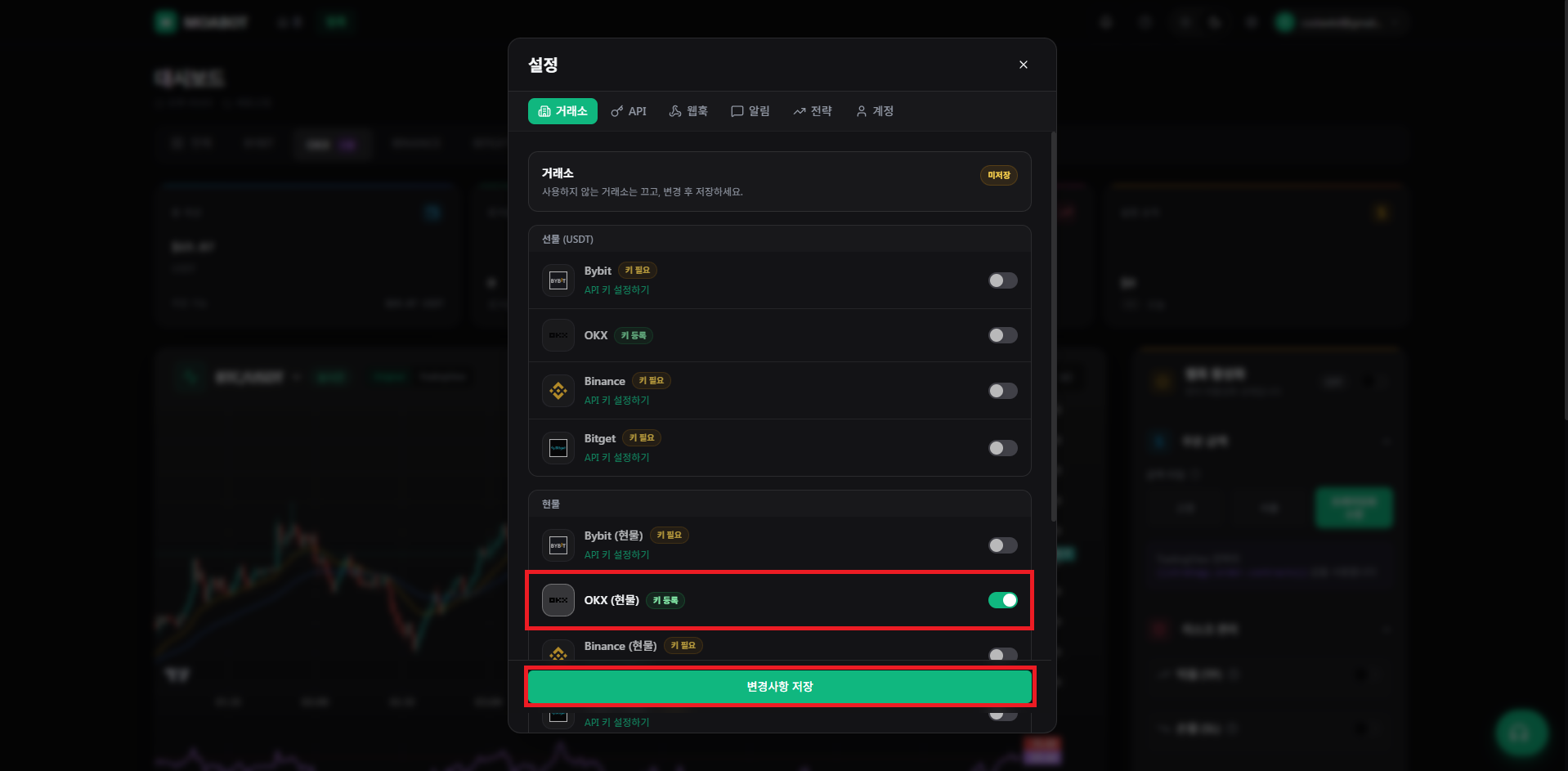

03OKX · Hyper RSI

Enable OKX spot

What to do on this screen

Toggle OKX spot to ON, then press "Save changes".

Checkpoints

An API key with spot-trading permission must be registered in advance.
Spot has no leverage — if funds are insufficient, the order itself will not execute.

Spot sell (take-profit) is subject to each exchange's minimum-order policy. See the Funding Notice section.

Next: Webhook ON + TradingView quantity mode

OKX Hyper RSI 03 Enable OKX spot — Find the menu matching the step title on the capture, then walk the checkpoints on the left in order.

04OKX · Hyper RSI

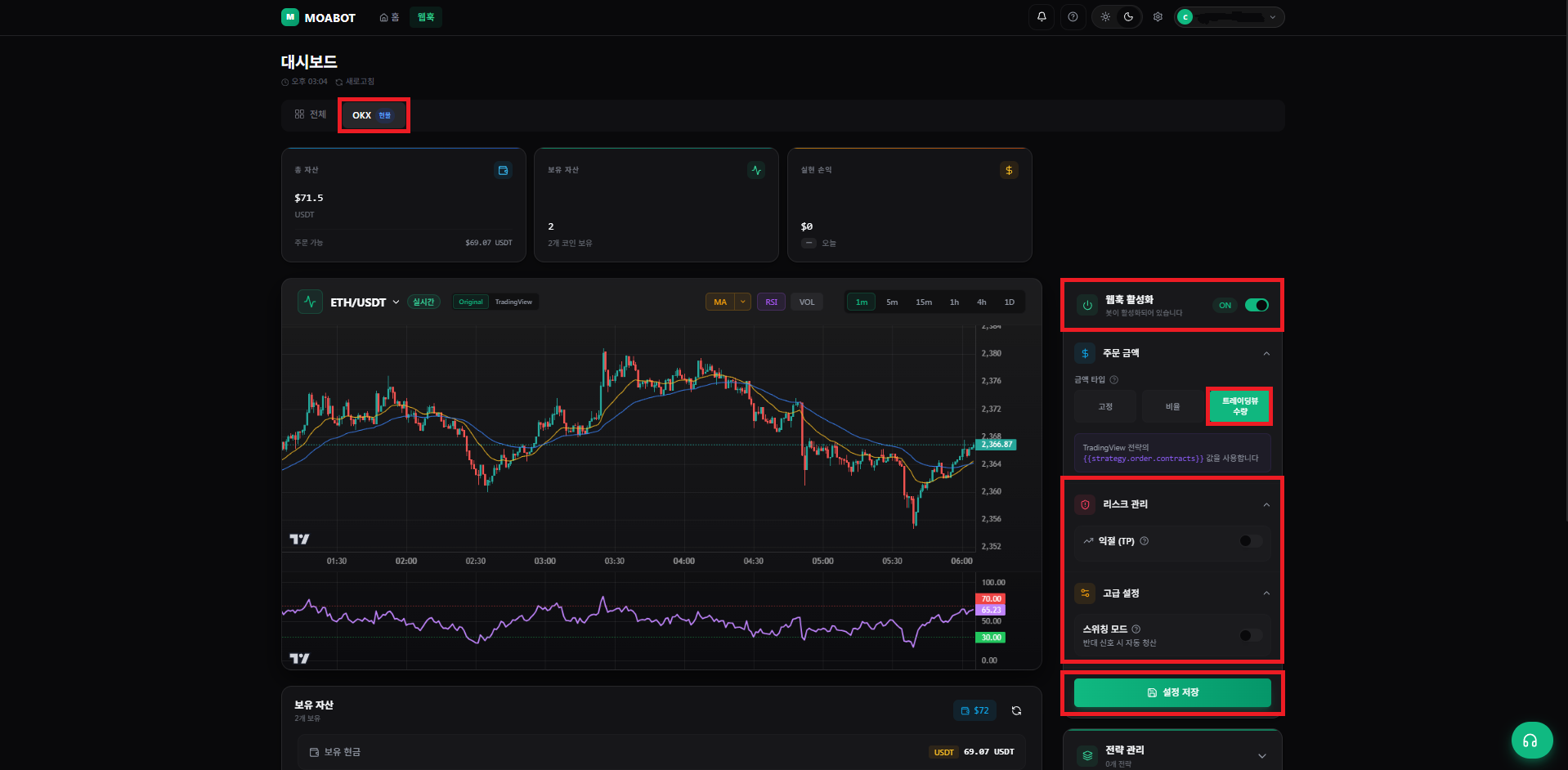

Webhook ON + TradingView quantity mode

What to do on this screen

After confirming OKX spot is shown, turn webhook ON, set order entry mode to "TradingView quantity", and save.

Checkpoints

Keep risk management / advanced settings disabled.
TradingView quantity mode executes orders using the quantity carried in the chart alert message.
If you don't press "Save settings", the change won't apply when you move on.

Next: Open the TradingView chart

OKX Hyper RSI 04 Webhook ON + TradingView quantity mode — Find the menu matching the step title on the capture, then walk the checkpoints on the left in order.

05OKX · Hyper RSI

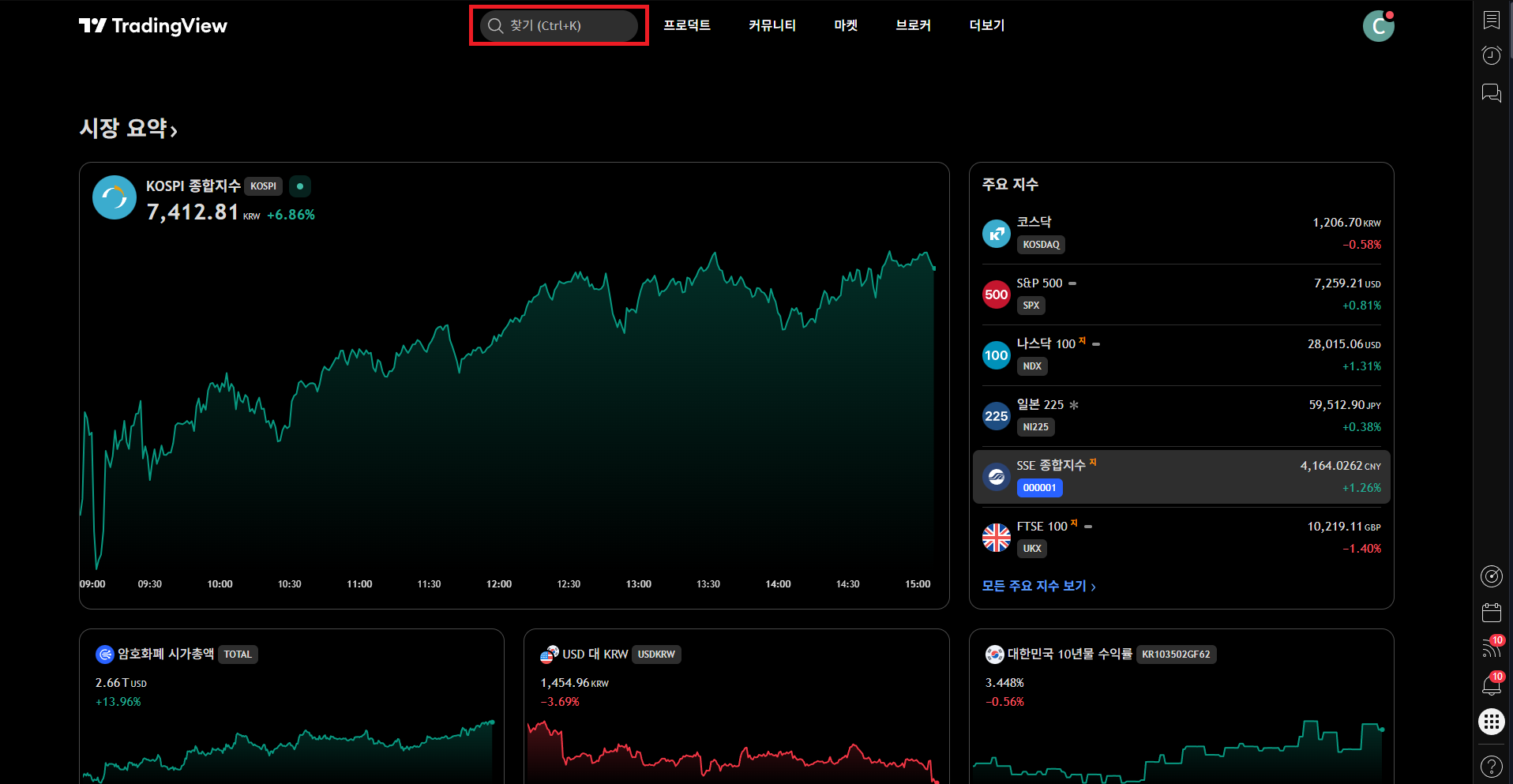

Open the TradingView chart

What to do on this screen

Go to TradingView Supercharts and click the symbol area at the top-left to open the search box.

Checkpoints

TradingView free tier supports webhook URLs.
Plan tier does not affect alert count — pick whichever plan fits you.

Next: Pick symbol + exchange

OKX Hyper RSI 05 Open the TradingView chart — Find the menu matching the step title on the capture, then walk the checkpoints on the left in order.

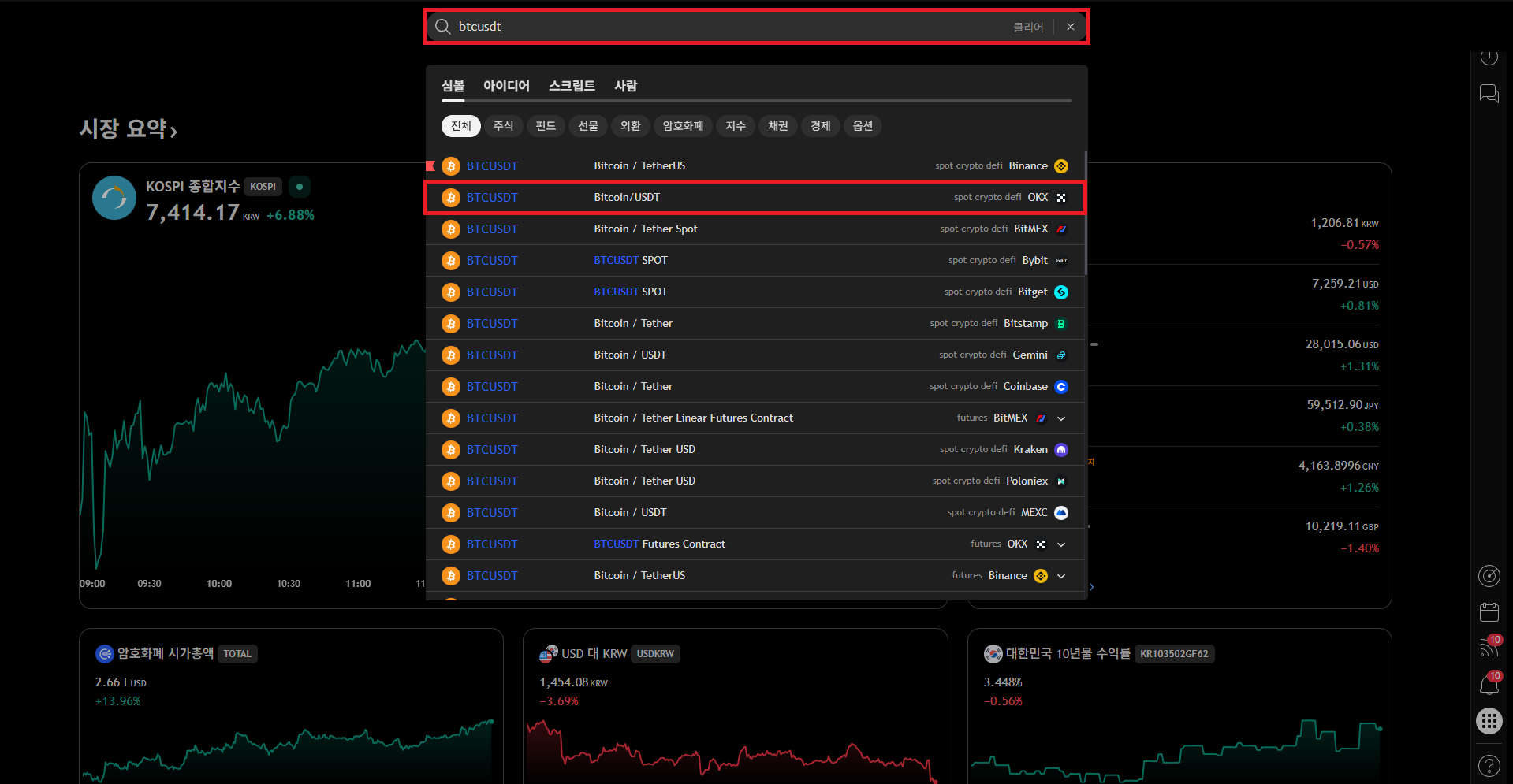

06OKX · Hyper RSI

Pick symbol + exchange

What to do on this screen

Type BTC/USDT into the search box and select the chart shown for OKX on the right.

Checkpoints

Different exchanges have different prices — alerts will fire at different moments.
e.g. BTC/USDT — OKX (do not use charts from other exchanges).

Next: Add the invite-only indicator

OKX Hyper RSI 06 Pick symbol + exchange — Find the menu matching the step title on the capture, then walk the checkpoints on the left in order.

07OKX · Hyper RSI

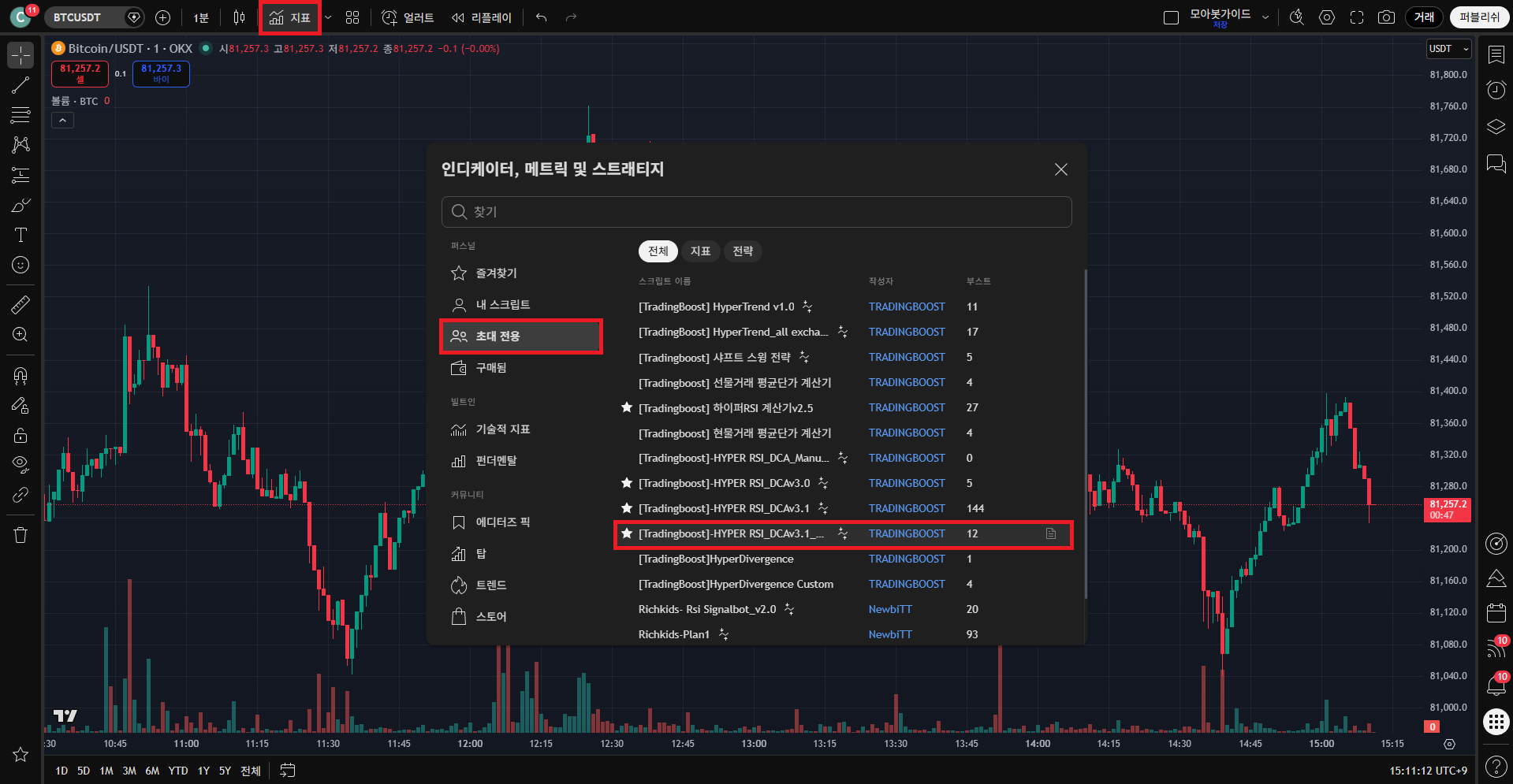

Add the invite-only indicator

What to do on this screen

Top menu → "Indicators" → "Invite-only" → click "[Tradingboost] HYPER RSI_DCAv3.1" to add it to the chart.

Checkpoints

If the invite-only section is empty, verify that your TradingView ID is correctly entered in MOABOT.
Indicator-access sync usually takes 5–10 minutes.

Next: Pick the timeframe

OKX Hyper RSI 07 Add the invite-only indicator — Find the menu matching the step title on the capture, then walk the checkpoints on the left in order.

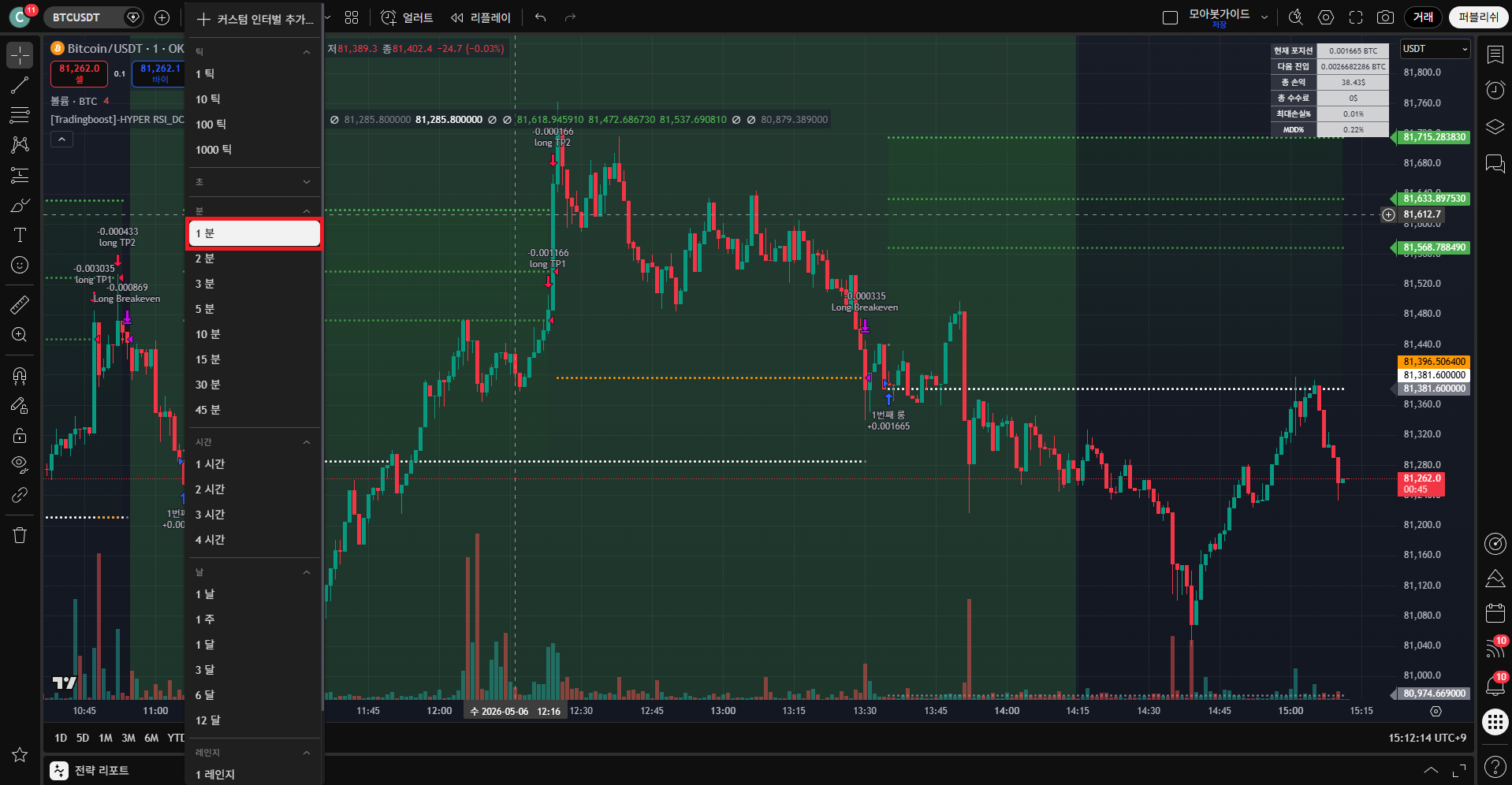

08OKX · Hyper RSI

Pick the timeframe

What to do on this screen

Choose your trading timeframe in the top time selector (e.g. 5m / 15m / 1h).

Checkpoints

Shorter timeframes trigger alerts more often — more trades, more noise.
Decide based on your capital, order limits, and how much you can monitor.

Next: Open indicator settings (Inputs tab)

OKX Hyper RSI 08 Pick the timeframe — Find the menu matching the step title on the capture, then walk the checkpoints on the left in order.

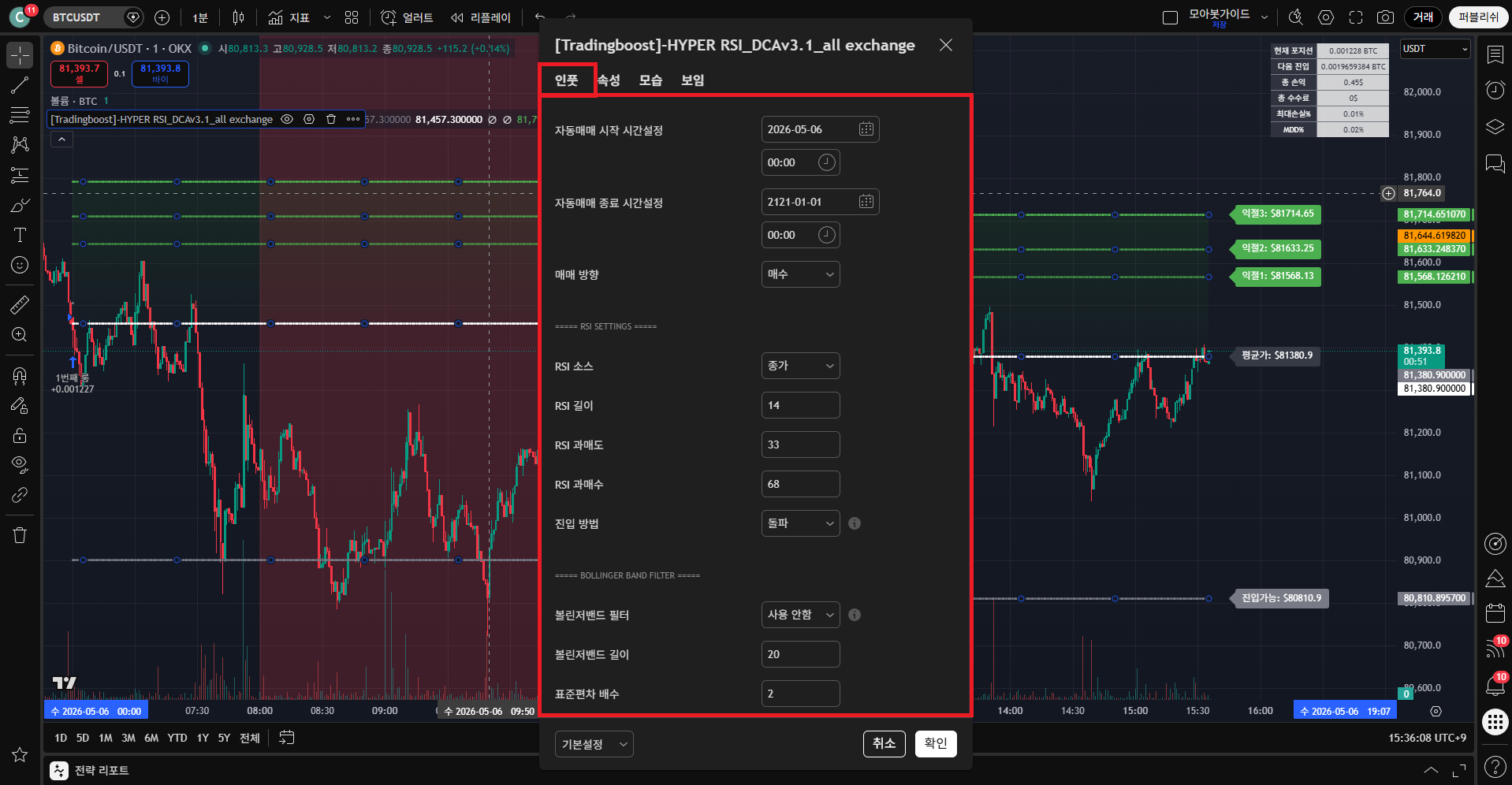

09OKX · Hyper RSI

Open indicator settings (Inputs tab)

What to do on this screen

Double-click the "HYPER RSI_DCAv3.1" label at the top-left of the chart to open the settings dialog. In the "Inputs" tab, configure values that suit your trading style.

Checkpoints

See the "Input Reference" section below for the meaning of each field and recommended starting values.
These are only references. Adjust to match your own capital and risk.

Input values directly affect trading results. Start with the most conservative setup.

Next: Properties tab — fill in initial capital / commission only

OKX Hyper RSI 09 Open indicator settings (Inputs tab) — Find the menu matching the step title on the capture, then walk the checkpoints on the left in order.

10OKX · Hyper RSI

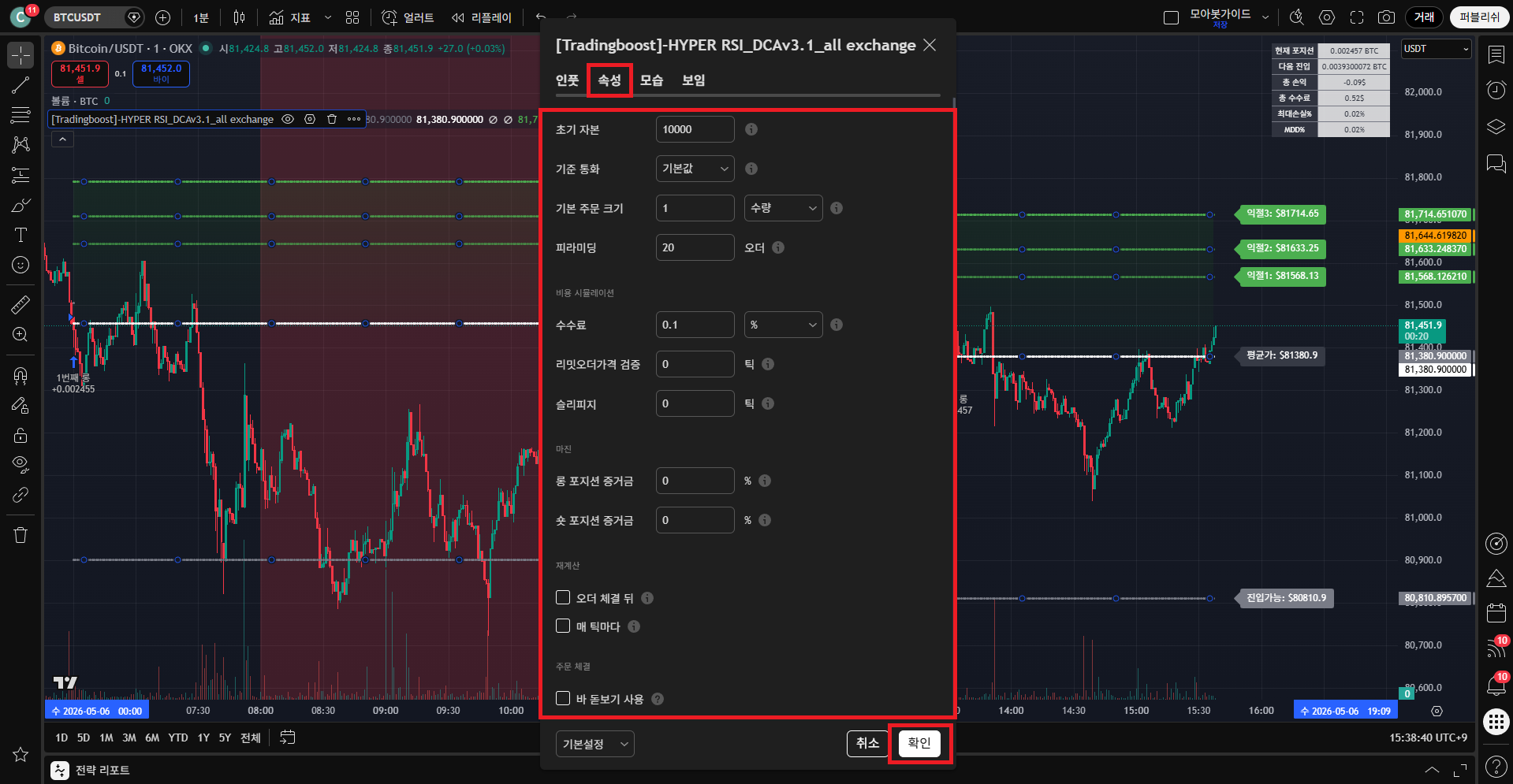

Properties tab — fill in initial capital / commission only

What to do on this screen

In the "Properties" tab, fill in only the initial capital and commission (fee) values matching your environment, then press "OK".

Checkpoints

Initial capital = the actual amount you will trade (in USDT).
Commission = OKX spot fee rate (%) — typically 0.05–0.25% depending on your tier.
Do not change other fields (pyramiding, slippage, margin, etc.).

※ Editing fields other than initial capital and commission can cause the indicator to misbehave.

Next: Create an alert + message setup

OKX Hyper RSI 10 Properties tab — fill in initial capital / commission only — Find the menu matching the step title on the capture, then walk the checkpoints on the left in order.

11OKX · Hyper RSI

Create an alert + message setup

What to do on this screen

On the right side of the chart, click Alerts (clock icon) → create a new alert. Verify that "Condition" is set to [Tradingboost] HYPER RSI_DCAv3.1 and that "Interval" matches the chart, then leave the message box empty.

Checkpoints

Enable the "Any alert() function call" option so that every alert fires its message.
Name the alert something recognizable (e.g. HRSI-OKX-15m).

Next: Copy the strategy code from MOABOT

OKX Hyper RSI 11 Create an alert + message setup — Find the menu matching the step title on the capture, then walk the checkpoints on the left in order.

12OKX · Hyper RSI

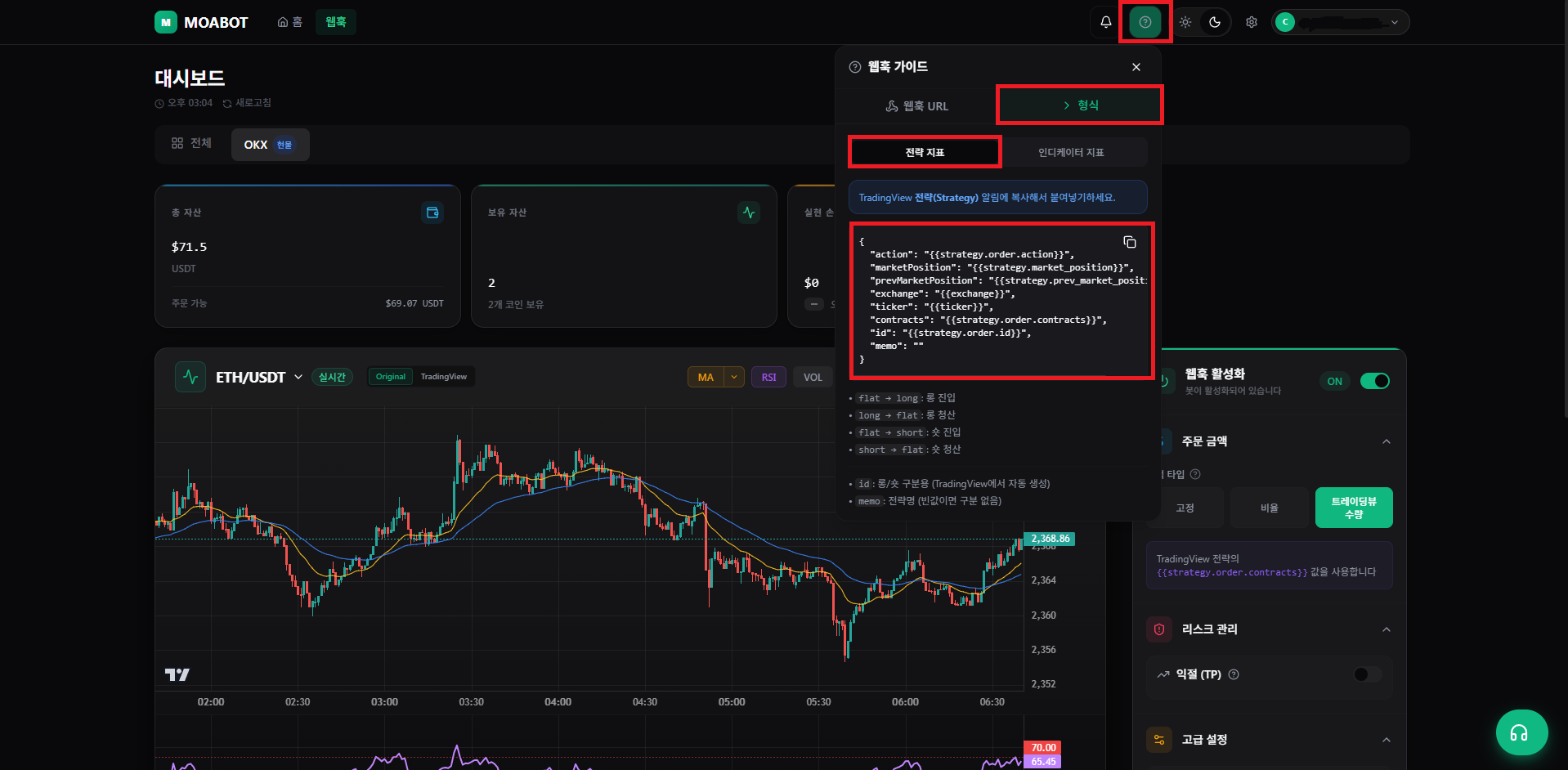

Copy the strategy code from MOABOT

What to do on this screen

In MOABOT, click "?(Help)" at the top-right → "Format" → "Strategy indicator" to see the alert-message template. Copy the entire code.

Checkpoints

The copied code includes your personal identifier — do not share it.
The code works regardless of exchange / symbol / timeframe changes.

Next: Paste the code into the message box

OKX Hyper RSI 12 Copy the strategy code from MOABOT — Find the menu matching the step title on the capture, then walk the checkpoints on the left in order.

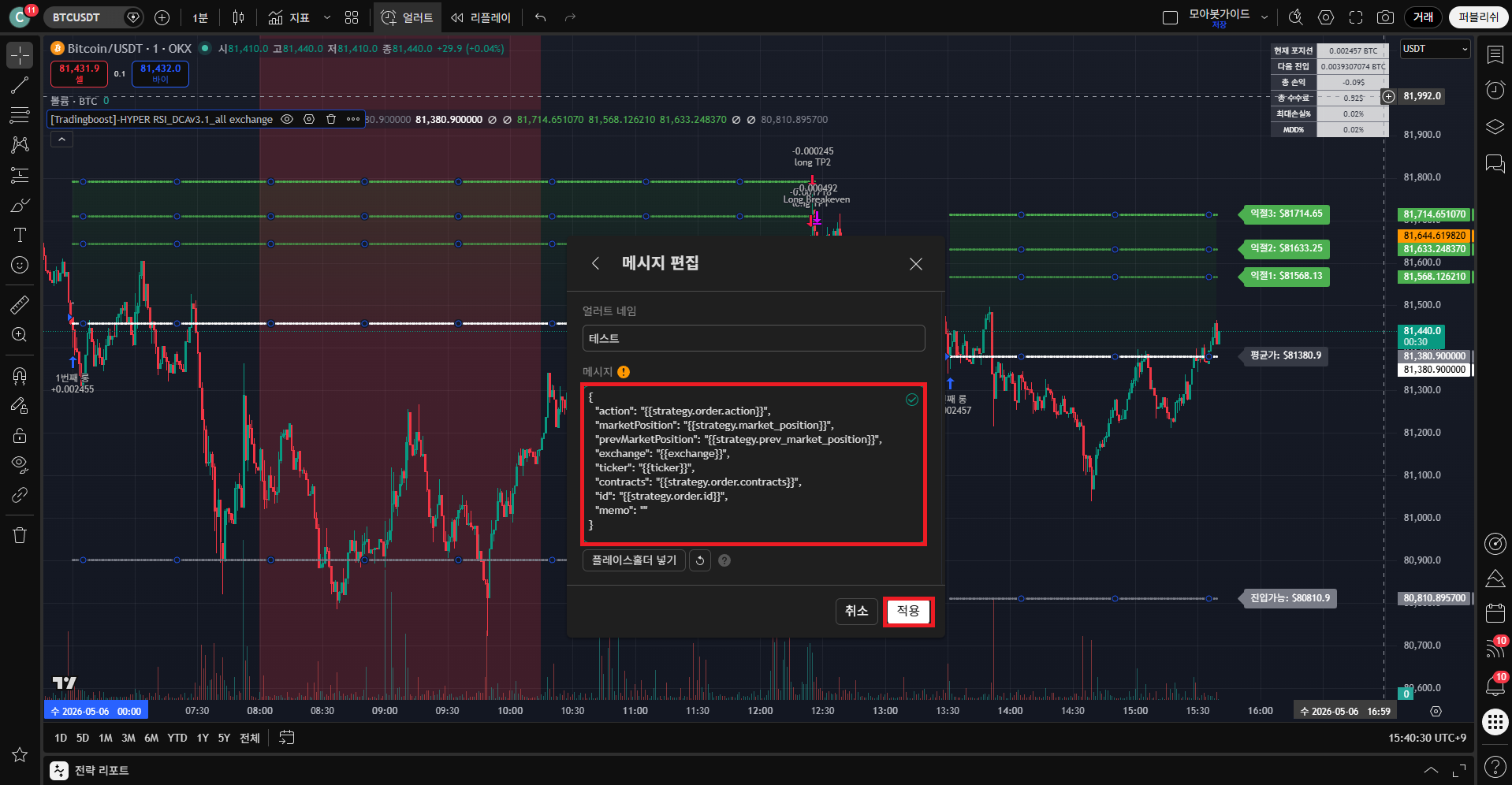

13OKX · Hyper RSI

Paste the code into the message box

What to do on this screen

Paste the copied code into the message box of the TradingView alert dialog. Do not add any extra text.

Checkpoints

If the message format is broken, MOABOT cannot parse the signal.
Leading/trailing whitespace is fine, but do not add other words.

Next: Notification channels — App / Toast / Webhook

OKX Hyper RSI 13 Paste the code into the message box — Find the menu matching the step title on the capture, then walk the checkpoints on the left in order.

14OKX · Hyper RSI

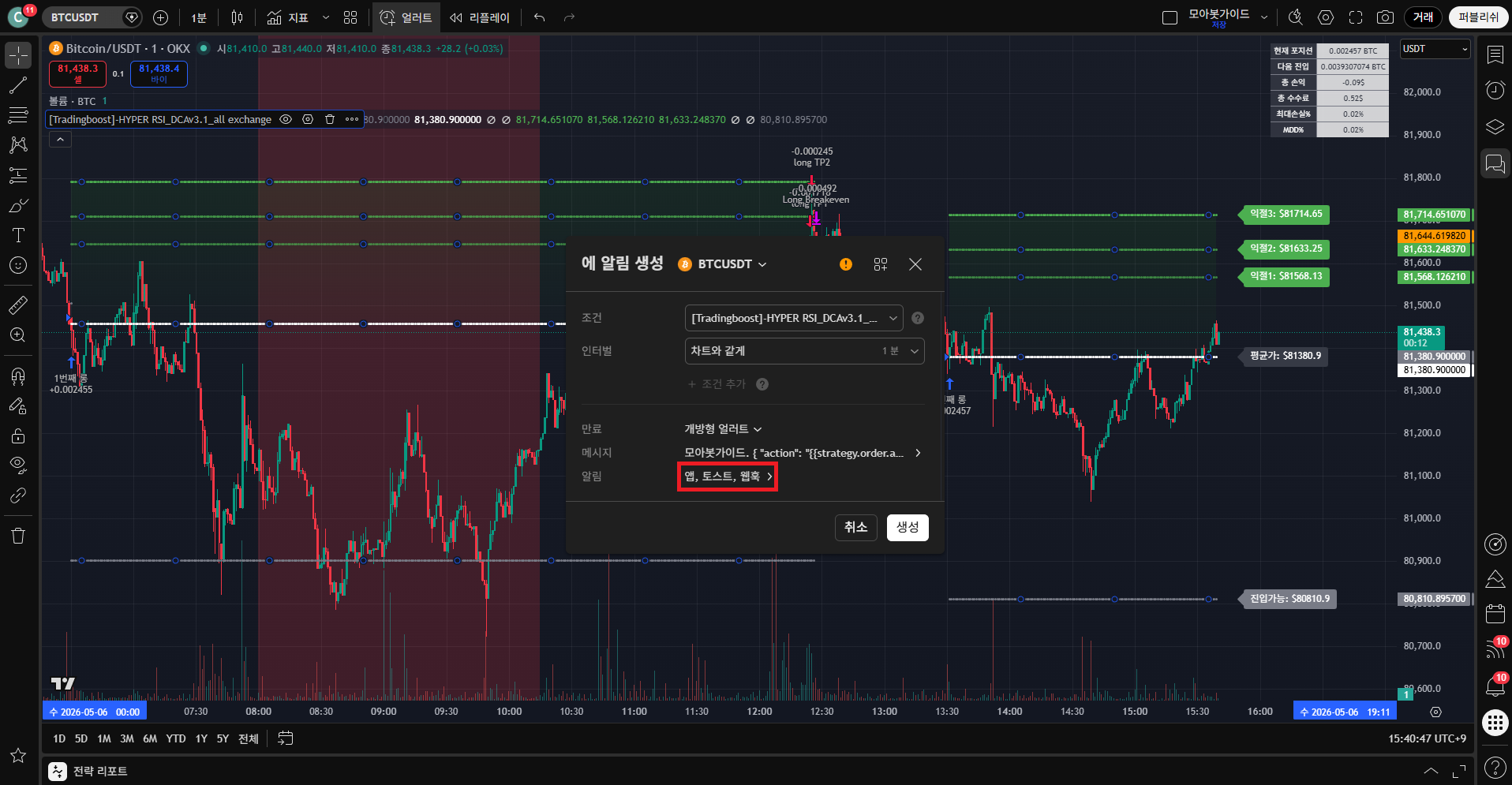

Notification channels — App / Toast / Webhook

What to do on this screen

In the alert's "Notifications" tab, check "Show in app / Pop-up (toast) / Webhook URL".

Checkpoints

Webhook URL must be enabled for MOABOT to receive the signal.
App / toast are for your own monitoring — turning them off does not affect trading.

Next: Copy + paste the webhook URL

OKX Hyper RSI 14 Notification channels — App / Toast / Webhook — Find the menu matching the step title on the capture, then walk the checkpoints on the left in order.

15OKX · Hyper RSI

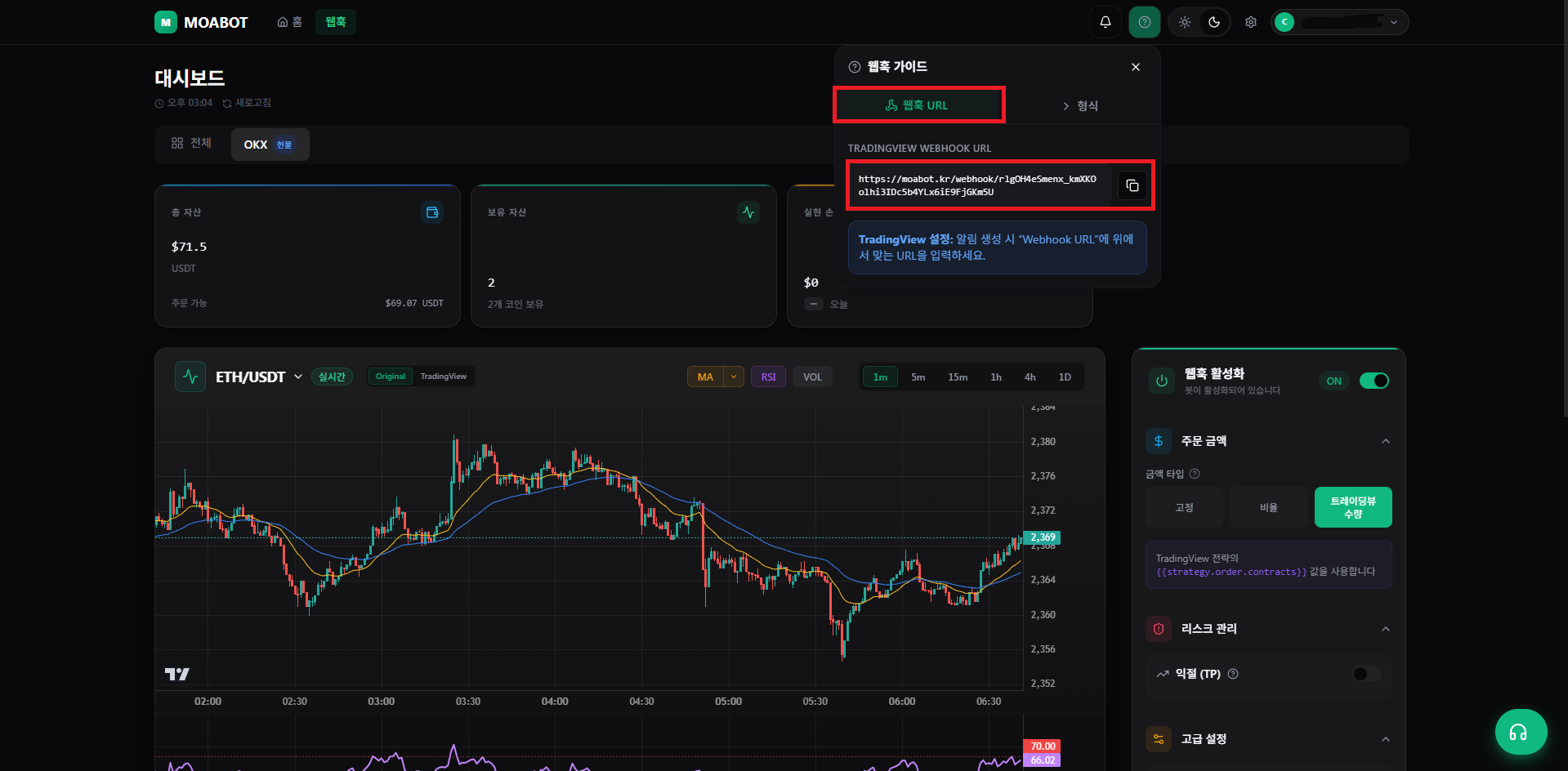

Copy + paste the webhook URL

What to do on this screen

Copy your URL from the "Webhook URL" area of the MOABOT webhook dashboard, paste it into the Webhook URL field of the TradingView alert, then click "Apply".

Checkpoints

The webhook URL is unique per user — if shared externally, regenerate it immediately.
One URL can be used for many alerts.

Next: Create the alert → verify it's active via the clock icon

OKX Hyper RSI 15 Copy + paste the webhook URL — Find the menu matching the step title on the capture, then walk the checkpoints on the left in order.

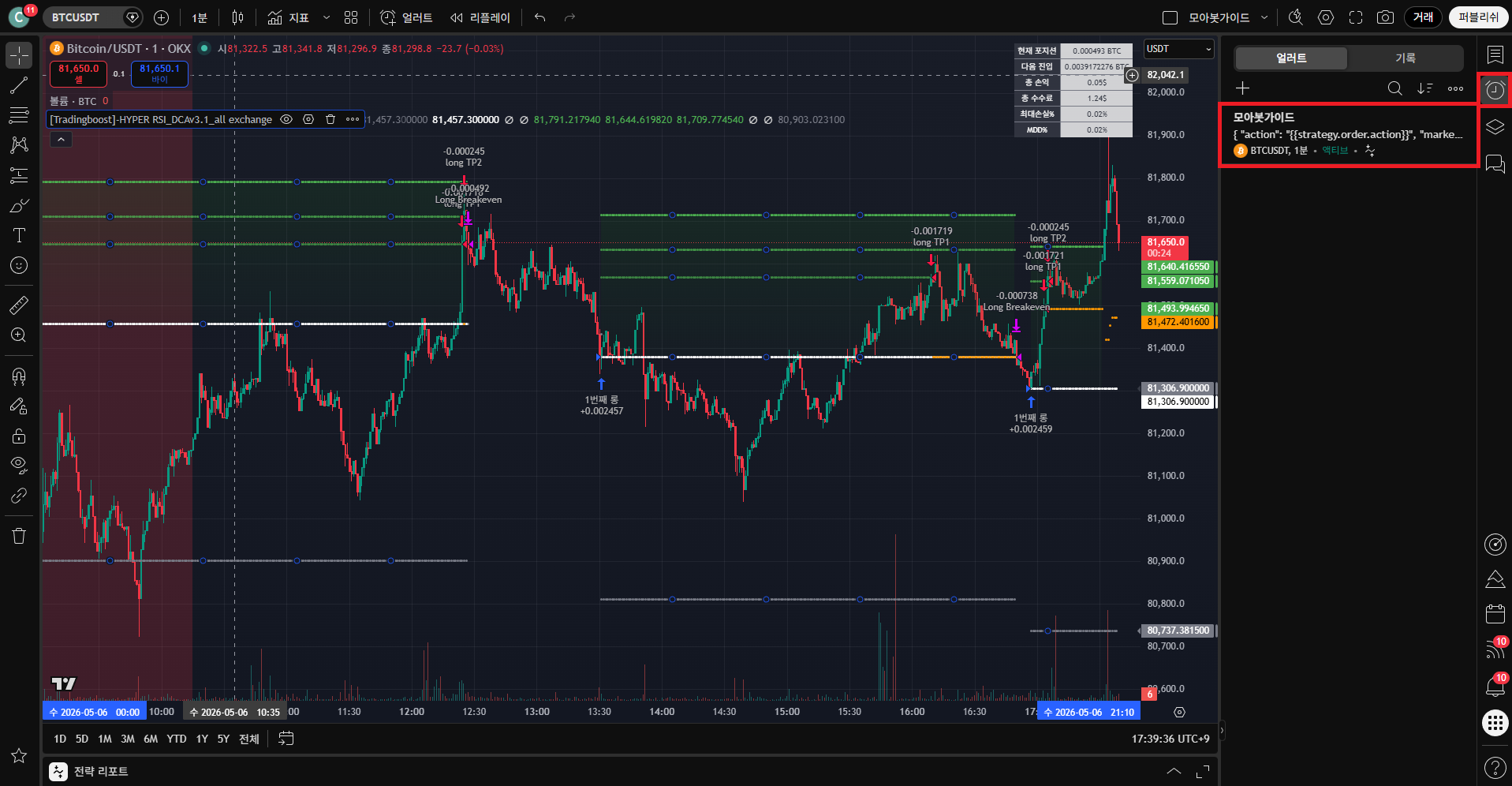

16OKX · Hyper RSI

Create the alert → verify it's active via the clock icon

What to do on this screen

Click "Create" to make the alert, then click the clock icon on the right of the chart to confirm the new alert is active.

Checkpoints

Active alerts are marked with a green dot next to the clock icon.
Repeat for other exchanges / symbols / timeframes.

From here on, MOABOT executes orders automatically every time the chart signal fires.

OKX Hyper RSI 16 Create the alert → verify it's active via the clock icon — Find the menu matching the step title on the capture, then walk the checkpoints on the left in order.

Input Reference

Indicator inputs — meaning and recommended starting values

Definitions and example starting values for every field. All values are starting points — adjust based on your own capital and trading style.

Auto-trade window / Direction

Defines when the indicator becomes active and the trading direction. Start time must be after the current moment, or back-fired fake signals can fire.

Auto-trade start time

e.g. 2025-11-01 00:00 (after now)

Auto-trade end time

Set far in the future (e.g. 2121-01-01)

Direction

Long (buy)
Short (sell)
Both (long + short)

Spot supports long-only. Both / short are for futures accounts.

HYPER RSI 인풋 — Auto-trade window / Direction — Actual indicator settings screen

RSI source / Length / Oversold·Overbought

The RSI calculation base used as the entry trigger. "Source" chooses which candle price feeds the RSI.

RSI source

Close (recommended)
Open / High / Low
(H+L)/2, (H+L+C)/3, etc.

RSI length

Default 14. Shorter = more signals + more noise.

RSI oversold

e.g. 33. Lower = more conservative entries.

RSI overbought

e.g. 68. Used as a take-profit reference.

HYPER RSI 인풋 — RSI source / Length / Oversold·Overbought — Actual indicator settings screen

Entry method + Bollinger Band filter

Decides when to actually enter after RSI conditions are met, and whether Bollinger Bands work as an extra filter.

When both RSI and Bollinger filters are ON, entry requires both conditions at once.

Entry method

Breakout (first cross of the RSI line)
Inflection (direction flip)
Inflection breakout (flip then opposite cross)

Bollinger Band filter

Disabled
Upper/Lower (inside/outside band)
Upper/Lower touch
Breakout / Inflection / Inflection breakout

Bollinger length

Default 20

Standard deviation multiplier

Default 2 (band width)

HYPER RSI 인풋 — Entry method + Bollinger Band filter — Actual indicator settings screen

Initial entry (1st entry)

How much you enter on the first signal. Always check each exchange's minimum lot size and minimum order amount first.

※ Minimum contract size differs per coin. Check your exchange's market info for the minimum lot size (BTC: 0.0001, etc.) and minimum order amount.

Initial entry sizing method

% of capital
Contracts / Quantity
Amount (USDT)

Initial contracts / amount / percent

e.g. 0.75% of capital — conservative starting point

HYPER RSI 인풋 — Initial entry (1st entry) — Actual indicator settings screen

Additional entries (DCA) — split buying

After the first entry, if the market moves against you, this configures how to lower the average price with split buys.

DCA contract multiplier

e.g. 1.6 — each step buys 1.6x the previous step

DCA trigger basis

Price
RSI oversold/overbought only
Bollinger condition only

DCA reference price

Average price
Last entry price

DCA gap

Amount-based
Percent-based
ATR-based

Maximum entries

e.g. 7 (including 1st — so DCA count is 6)

HYPER RSI 인풋 — Additional entries (DCA) — split buying — Actual indicator settings screen

Take profit (TP1 / TP2 / TP3)

The basis for splitting position exit. The 3-stage take-profit percentages must sum to 100.

※ Each TP slice must clear the exchange's minimum lot size (e.g. BTC 0.0001). Insufficient funds cause TP to be rejected.

TP basis

Amount (USDT)
Percent (%)
ATR

TP1 / TP2 / TP3 ratio

e.g. 70 / 10 / 20 — sum = 100

Long / Short targets 1·2·3

Price distance for each target (e.g. ATR 2.3 / 3.1 / 4.1)

HYPER RSI 인풋 — Take profit (TP1 / TP2 / TP3) — Actual indicator settings screen

Stop loss / Break-even / Trailing stop

Risk management options. Start conservatively and adjust once you understand the behavior.

Stop loss mode

Disabled (default)
Stop on average price
Stop on last entry price

Stop loss basis

Amount
Percent
ATR

Break-even

Move stop to break-even after TP1
Move stop to TP1 after TP2
Move stop to TP2 after TP3

Trailing stop

After TP3, trail-stop remaining size (e.g. 0.4%)

Position lightening + Trend filter

How to handle leftover size when entries reach high steps, and trend-based filter options.

Position lightening

At a target step, clear a portion (e.g. clear 80% at step 7)

After lightening

Continue DCA from where it was
Restart from step 1

Trend options

Uptrend — long only
Downtrend — short only
Exit on strong counter-trend
Long-term trend (4H reference)

HYPER RSI 인풋 — Position lightening + Trend filter — Actual indicator settings screen

Add-on options + Consecutive-entry filter

Re-entry policy, on-chart status table, and consecutive-signal filtering.

ADD ON

Allow re-entry after TP1
Show table (chart top-right status panel)

Consecutive-entry block

Ignore signals for N candles after entry.

Cool-down candle count

e.g. 5 — wait 5 candles for the next signal.

HYPER RSI 인풋 — Add-on options + Consecutive-entry filter — Actual indicator settings screen

Properties tab — Initial capital / Commission

Separately from the Inputs tab, the "Properties" tab is where the backtest / simulation capital and trade fee live. Do not touch other fields here — the indicator can misbehave.

※ Do not modify Base currency / Order size / Pyramiding / Slippage / Margin / Recalculation / Fill assumption.

Initial capital

Actual amount you will trade (USDT or KRW equivalent)

Commission

Exchange spot fee rate — typically 0.05–0.1%

Check active alerts in the webhook dashboard

Once setup is complete, the MOABOT webhook dashboard shows incoming signals and order results in real time.

Go to Webhook Dashboard
